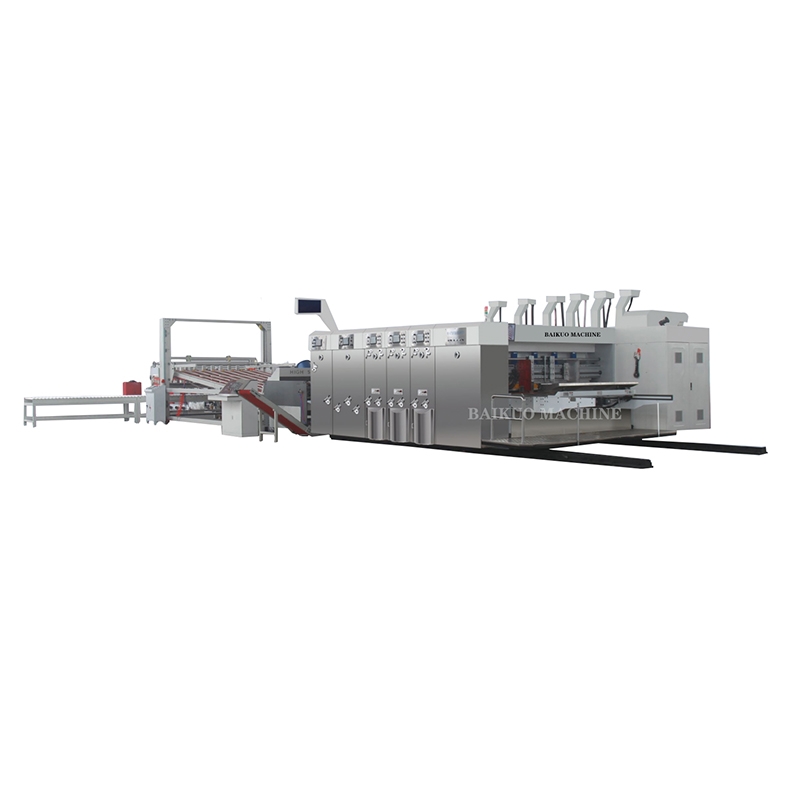

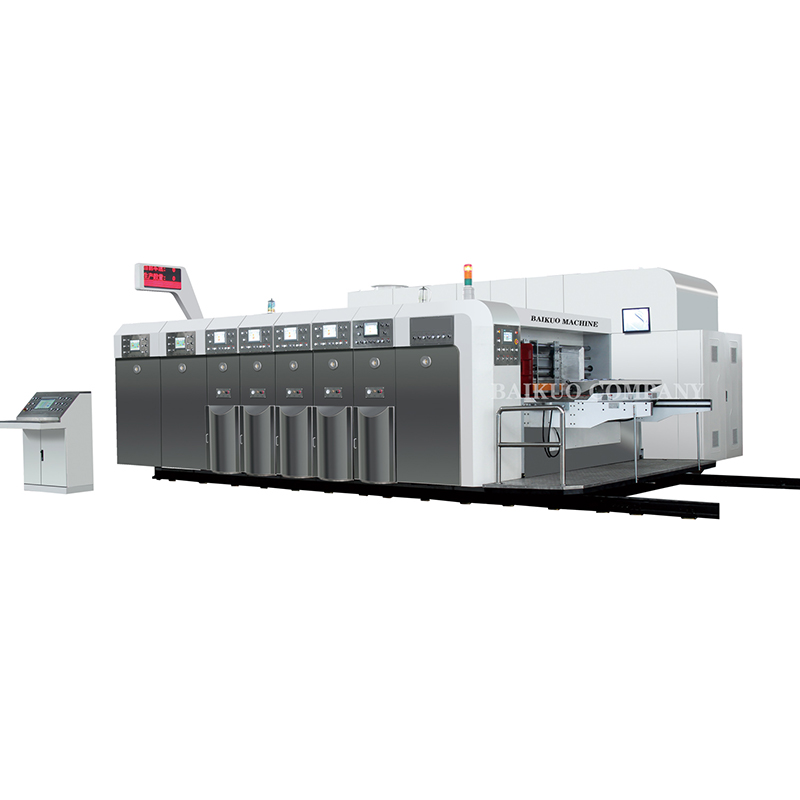

Super large printing slotting die cutting machine
◆ High quality steel, surface grinding, hard chrome plated.
◆ Balance correction, smooth operation.
◆ Printing phase delimiter device, using pneumatic brake mechanism, when the unit separation adjustment phase or cleaning, brake mechanism limits gear rotation, maintain the original gear position fixed point.
Slotting
◆ Pre-pressing wheel, the cardboard is not easy to break after the pre-pressing line.
◆ Slotted tool box height adjustment, transverse adjustment are equipped with anti-collision protection device.
Die-cutting
◆ Rubber cushion roller is high quality steel, surface grinding, hard chrome plated.
◆ Balance correction, increase running stability.
◆ Die roller is high quality steel, surface grinding, hard chrome plated.
◆ Dynamic balance correction, increase running stability.
◆ The die cutting part adopts servo independent drive device, which can avoid the double shadow when printing.
| Model | 2542 | |
| Roller diameter (induding plate thickness) | mm | 4 800 |
| Roll length | mm | 4200 |
| Inside width of machine | mm | 4600 |
| Economic velocity | Slice/points | 40-60 |
| Maximum speed | Slice/points | 100 |
| Maximum printing size | mm | 2450x4200 |
| Maximum feed size | mm | 2500x4600 |
| Minimum feed size | mm | 550x1000 |
| Adaptable board thickness | mm | 45337 |
| Thickness of wall panel | 33 | 60 |
| Slot width | mm | 8 |
| Angle width | mm | 50 |
| Overprint eror (double) | mm | ±0.5 |
| Die cutting error | mm | ±1 |
Function and characteristics
1. The electrical appliances and computer software of the whole machine adopt international famous brands with stable quality; Man-machine interface, multiple touch screen control, computer order management, easy to operate, faster change order. (999 orders can be pre-stored)
2. The wall panel and important parts of the whole machine adopt aging treatment, tempering to eliminate the internal stress of the metal; Are made of machining center, CNC grinding machine grinding processing.
3. The whole machine shaft and roller are made of steel, grinding processing, computer dynamic balance correction, hard chrome plated surface.
4. The whole machine transmission gear is made of 20CrMnTi alloy steel, carburized and quenched, hardness HRC58-62; After grinding processing,6 - level precision, to ensure the long-term use of color.
5. The whole machine transmission parts (shaft, tooth connection), are made of keyless connection (expansion sleeve), eliminate the connection gap, suitable for large torque long-term high-speed operation.
6. The whole machine drive bearing, the important transmission parts are reinforced type aligning bearing, easy maintenance, longer service life. (Adopt three famous brands: "Havallo")
7. The lubrication system of the whole machine adopts spray type automatic lubrication, equipped with automatic balancing device, to maintain the same level of oil in each unit.
8. The whole machine adjustment preset function, paper feeding, printing, die cutting, automatic return to zero, partition memory automatic reset.
9. One-key split body reset function, unit after the split, after the one-key reset, split lighting. High accuracy, improve work efficiency.
10. The working gap of the whole machine can be adjusted quickly and conveniently without wrench.
11. The host fan adopts frequency conversion control to start and run more smoothly and save electricity.
12. Equipped with ink shortage alarm device, real-time monitoring of ink supply system working state.
13. Optional: ceramic roller; Scraper set ink system; Stacker.
