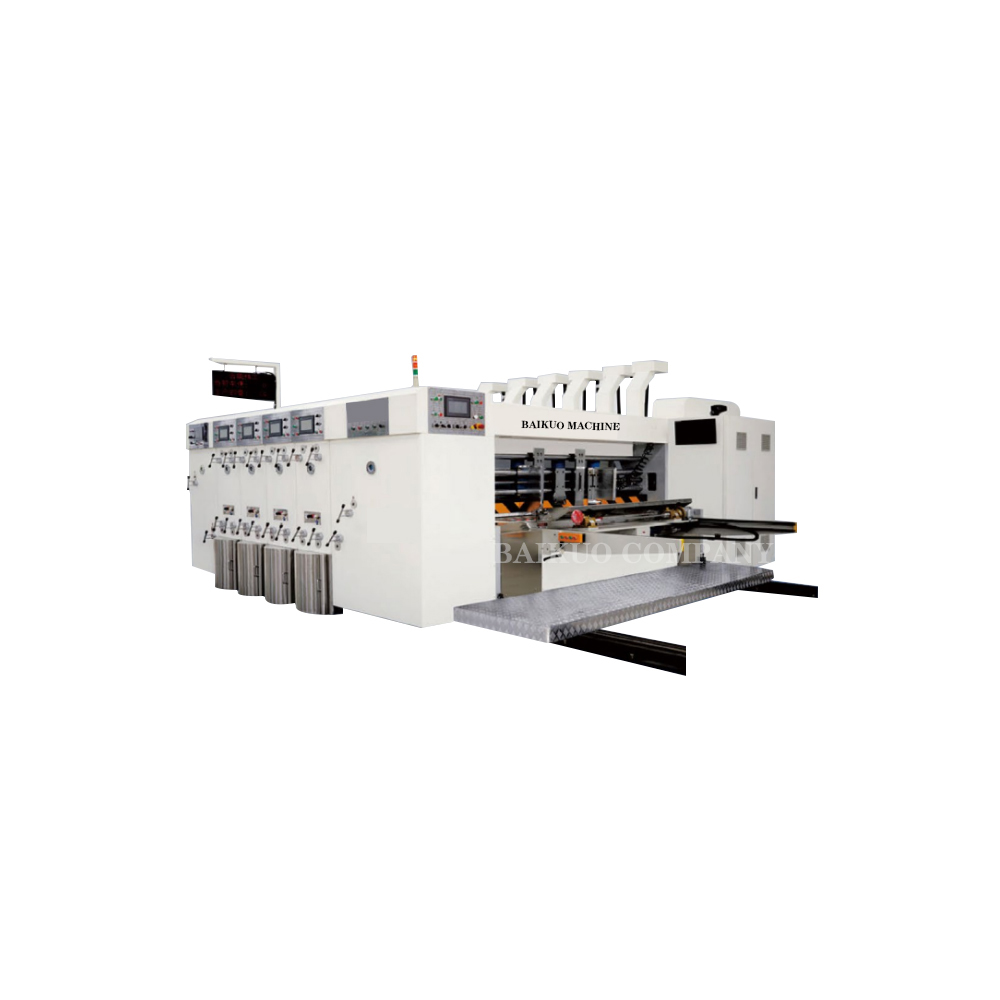

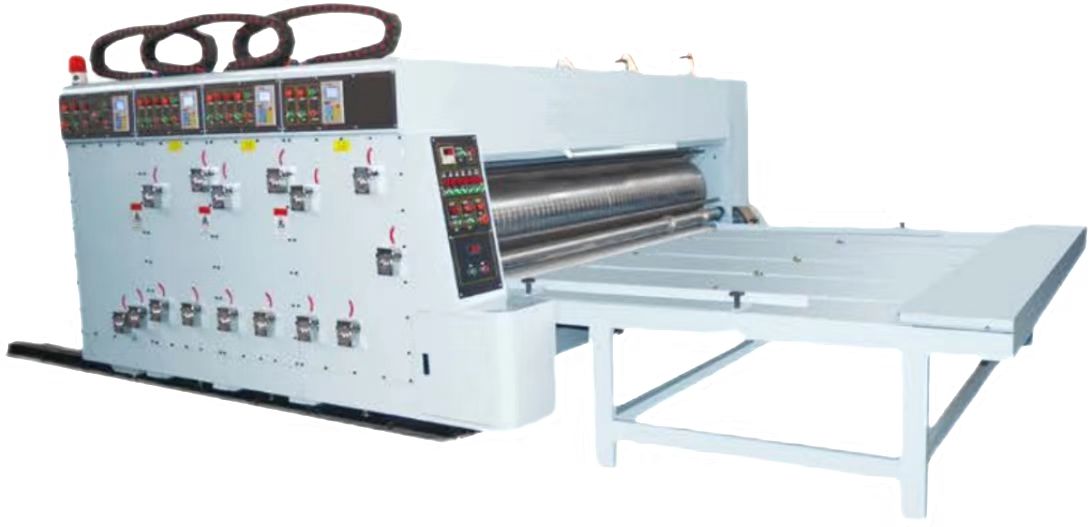

Semi-auto printing slotting die-cutting machine
Product parameter
| Product name | water ink carton printer die cutting machine |
| Size | 2800*1600 mm |
| Delivery time | 90 days after received your payment |
| Loading port | Tianjin port |
| Warranty time | Two year |
| Payment | 30%TT as deposit ,The balance T/T before shipping |
| FOB Price | 87,500USD |
Featurd
1.Whole machine electric parts was choice the domestic famous brand, good and steady quality .
2.Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digital controlled grinder.
3.All the transmission axles and rollers are made by high quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface.
4.All the transmission gears was used the 48# alloy steel, which is grinded after heat treatment, and it was made by rubbing. It still maintains the high topping precision.
5.Pneumatic combined control the whole machine. It has the function of counting, alarming, and operating at the back of the machine.
6.Planetary gear structure. All gears are after fine grinding.
7.Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.
Automatic gluing section

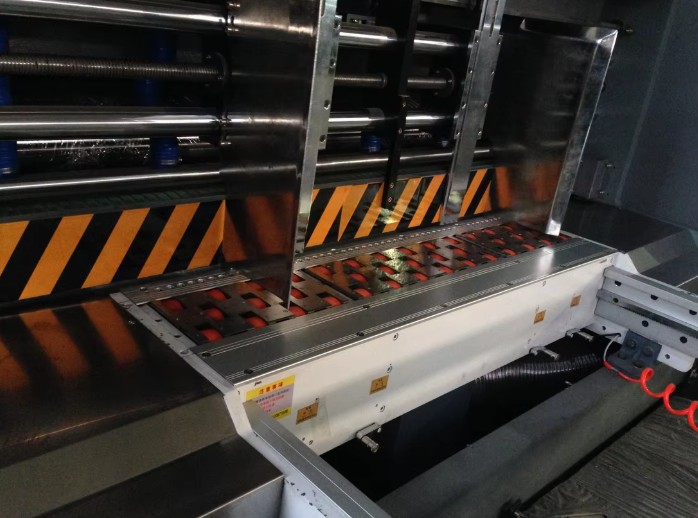

1. Paper feeding type: auto leadpaper feeding.
2. Control face-plate function button putting concentrate and simple, operated convenient.
3. Electrically controlled the connecting and separated for the every unit with alarm to ensure the operator’s safety during its proceeding.
4. Infrared photo-electricity counter can presetting the order paper quantity.
5. One lock function for whole machine, which can avoid the damaged the machine with error operation (The mainframe can not running when the every unit have not connected)
6. Pressure model elasticity feeding rubber roller, which can not to damaged the strength for corrugated cardboard.
Printing unit
1. Printing roller: made of high quality alloy steel, precise grinded with chrome lated.
2. Printing phases was adopted the planetary gear structure, the electric digital 360°adjustment, digital display(stop, running can adjustment).
3. Printing roller landscape orientation was adopted electric digital adjustment, the adjustment scope is 20mm.
4. Hanging plate device , total hanging and half hanging slotting notch, foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.
5. Fixing the oil interval, printing pressure roller, lead roller interval were used the self-lock worm wheel and worm device adjustment and fix.
6. Printing phase fix was used the pneumatic brake structure, the brake structure will stop the mainframe running when the every unit separated, which can keep the origin gear fix position can not move.
7. The steel anilox roller: 180-250 lines combined anilox roller. Steel surface chrome, pressure the anilox and rigid chrome.
8. Option: re-position function, computer memory printing plate position, which can automatic re-position when scrub the plate.
Pneumatic uplift plate device, the anilox roller break away pneumatic, smooth the oil automatic when the mainframe stop, it can prevent the oil dry.
Slotting unit
1.Slotting phases was adopted the planetary gear structure, the electric digital 360° adjustment, show the digit (stop, running can adjustment).
2.Slotting tool rest, pressure wheel, horizontal move by manual mechanic joint adjustment.
3.The height of box size was adjustment by synchronous.
4.Pressure interval was used the self-lock worm wheel and worm device adjustment and fix.
5.The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
6.Slotting knife was choice with the high quality alloy steel , which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used,it could be equipped with portable punching die holder.

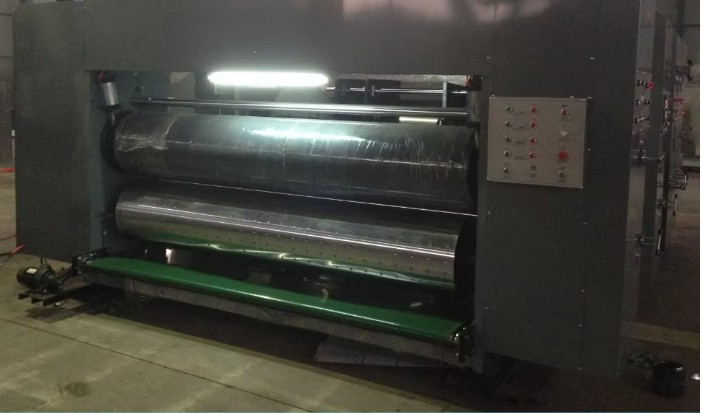

Die cutter unit
1.The side to side 50mm mechanical spiral movement device adopted on the anvil drum.
2.The die drum transverse movement can prolong the service life of anvil drum.
3.Die cutting phase is digitally controlled by motor and PLC.
4.The die cutting cylinder lateral register is digitally controlled by motor and PLC, rang about ±10mm.
5.Motorized caliper adjustment between anvil roll and die drum.
6.Self-locking system is adopted on feeding rolls.
7.Anvil Rubber roller speed compensation adopted independent motor for driving to control the rubber roller speed, the compensation scopes ±3mm.
8.Anvil trimmer to keep surface of the anvil covers flat and smooth.

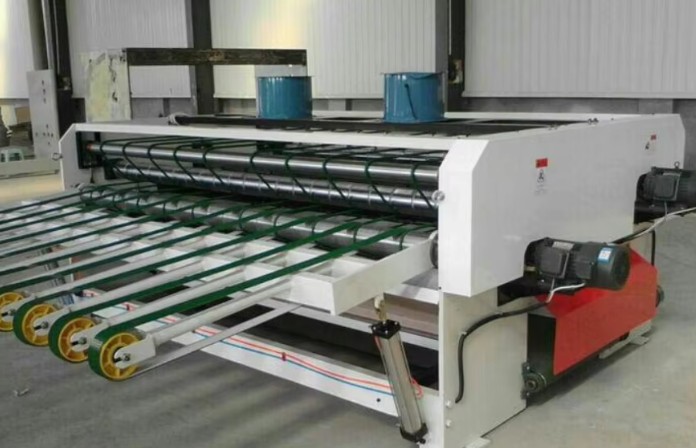

Vibrator machine
* The unit is designed to remove burrs (trimmings) remaining after cutting blanks on the corrugated box production line;
* Removal of trimmings is performed using round belts in section, vibrating under the influence of impacts of two rectangular rollers;
* The unit is equipped with two coolers for pressing the blanks and directed removal of the burr from the blanks on the conveyor table;
* The unit is made according to the parameters of the line.
Stacker unit
Answer the paper arm：
(1). can choose manual type or automatic type operation.
(2). answer the paper arm transmission belt, individually tuning firmness, do not suffer belt nearly restrictions.
Bed lifting platform：
(1). Puissant chain drive.
(2). stack height is 1600mm.
(3). bed sets lifting transmission motor attached brake function, bed sets to maintain fixed position, and from slipping.
(4). adding the safety protection devices, make fluctuation bed sets in, ensure control of homework personnel safety.
(5). graphic wrinkles hill-climbing belt, prevent cardboard slide.
Specification
| Parameter | Unit | Model | |||||
| HL-A 950-1800 | HL-A 950-2000 | HL-A 950-2200 | HL-A 4212-2200 | HL-A 4212-2400 | |||
| Max machinery speed | pcs/min | 120 | 120 | 120 | 120 | 120 | |
| Economic printing speed | pcs/min | 100 | 100 | 100 | 100 | 100 | |
| Max size of paperboard | mm | 950*2000 | 950*2200 | 950*2400 | 1300*2400 | 1300*2600 | |
| Min size of paperboard | mm | 260*500 | 260*500 | 260*500 | 350*800 | 350*800 | |
| Min space of slotting | Obverse knife | mm | 140*140*140*140 | 150*150*150*150 | |||
| Reverse knife | mm | 260*60*260*60 | 280*60*280*60 | ||||
| Max depth of slot | mm | 240 | 240 | 240 | 300 | 300 | |
| Skip feed size | mm | 1200*2000 | 1200*2200 | 1200*2400 | 1500*2400 | 1500*2600 | |
| Max printing area | mm ² | 950*1800 | 950*2000 | 950*2200 | 1300*2200 | 1300*2400 | |
| Thickness of standard plate | mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
