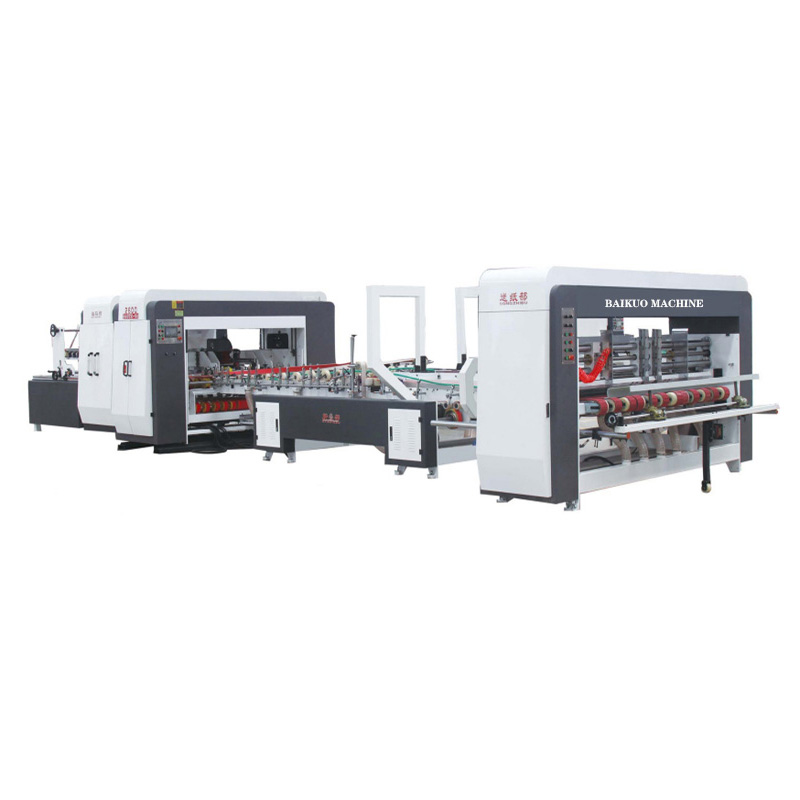

Auto Stitcher Machine
Product introduction
Intelligent and efficient, one-key order change, automatic adjustment
The main features of this machine are full computer control, easy operation, stable quality, speed to achieve economic benefits, greatly saving manpower.
◆ This nailing machine is an all-in-one pasting machine, which can paste boxes, nailing boxes, or paste first and then nail once. 3-5 minutes to complete the order change setting, you can mass production (with order memory function).
◆ Paste box nail box really achieve one-key conversion function (original creation in China).
◆ Suitable for three, five, single board.A.B.C and AB flute board nail. Electric adjustment of line pressure.
◆ With the pressure line function of each group (domestic initiative), the forming effect is better.
◆ Nail distance range: The minimum nail distance is 40mm and the maximum nail distance range is 500mm.
◆ Maximum nailing speed: 1500 nailing/min
◆ Speed with three nails for example the top speed is 140 per minute
◆ It can automatically complete the output work of paper folding, deviation correction, nailing box, paste box and counting heap.
◆ Single and double nails can be adjusted freely.
◆ The swinging type nailing head is adopted, which has the advantages of low power consumption, faster speed, more stability and effectively improving the quality of nailing box.
◆ The paper alignment device is used for secondary compensation and correction of missing box pieces to eliminate the scissors mouth.
◆ Nail boxes are more perfect.
◆ The stitching pressure can be adjusted automatically according to the cardboard thickness.
◆ Automatic wire feeding machine can realize wire detection, wire breakage, wire detection after use.
Characteristic
The automatic suture machine consists of a vacuum feeder and a folder suture unit. Display adjustment control, PLC computer adjustment, dual-frequency conversion synchronous operation. The operation model is simple, reliable, and accurate. Automatic feeding, folding, stitching, counting, and stacking. Fast speed, saving energy and cost.
1. Use the leading edge belt to absorb the feed accurately and reliably.
2. Adopt high-grade electromagnetic clutch and electromagnetic brake system, which is separately controlled by the material supply department.
3. The height of the press wheel can be adjusted, and the appropriate cardboard thickness is 2-8 mm.
4. Linkage with the folding part and frequency control.
5. the feeding part and the belt front baffle can be adjusted left and right.
Suture 1. Double import servo drive accuracy is high, reduce the mechanical transmission part, reduce the mechanical failure rate.
2.The suture part is operated by the touch screen. Parameters (suture distance, number, type, and tailgate) can be easily changed.
3.The control system adopts the Omron PLC control system.
4.All the switches in the control box are used in Taiwan Shilin.
5.The base and suture tools are made of German tungsten steel and wear-resistant.
6.The nail head is made of special steel and is precious computer products
.7. Switches and buttons use Taiwan Tiande.
7.Change the order quickly within one minute, easy to operate, no training. Suitable for single, double and reinforcing nails.
8.Automatic counter for easy bundling.
9.The splicing distance can reach 100 mm, which is displayed and adjusted on the touch screen. You can sew any carton with or without covers.
11. Automatic adjust the thickness of cardboard.
