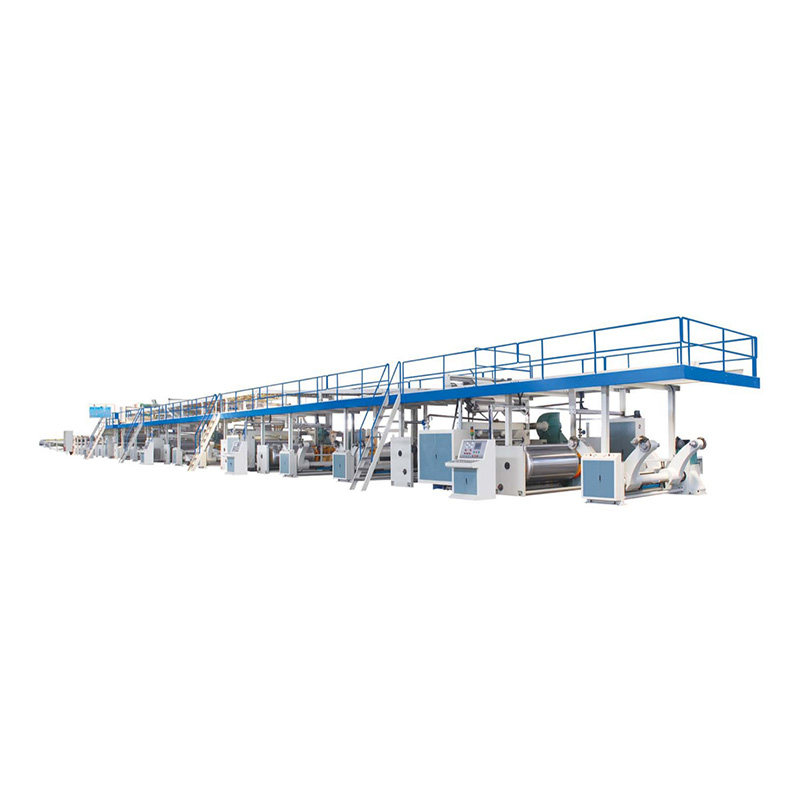

Corrugated Board Production Line

1. Effective width: 1400mm- 2500mm, design speed: 200m/min-250m/min

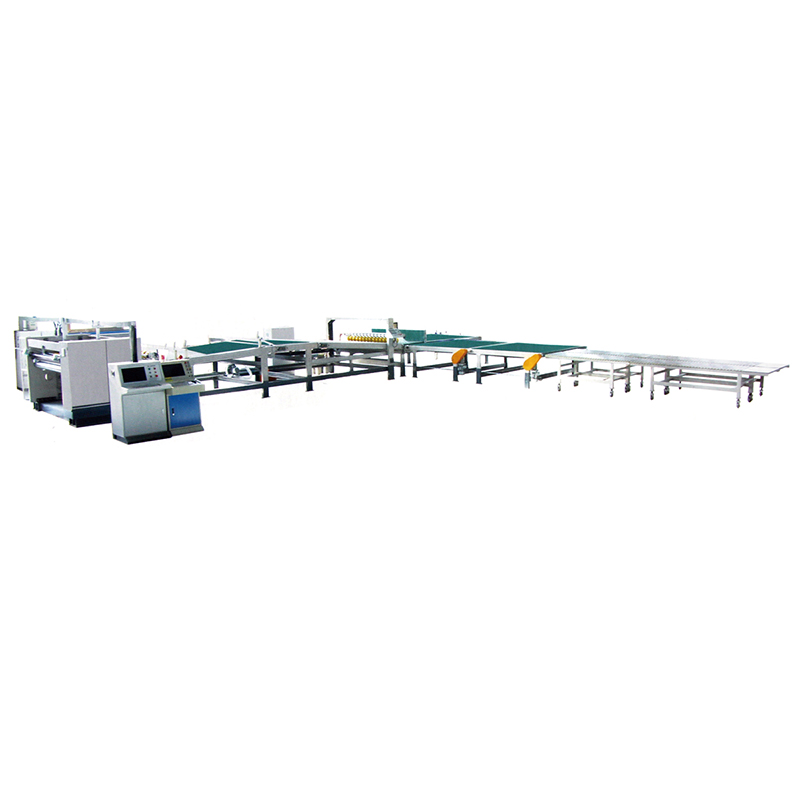

2. Maximum heap height: 250mm maximum stack length: 3500mm
3. Gantry stack. Change the single time 5 seconds, can automatically count, automatically roll out, automatic change.
4. Synchronous with the raw tube system, order management, centralized management, and no slow automatic change of orders.
5. The waste of raw tube is less than 700mm
6. Crawler stacked platform, ac servo control elevating, stacking code smoothly and neatly.
7. The frequency conversion control automatically smoothly and horizontally out of the paper when the stack reaches the set number.
8. Ac servo control positioning of rear baffle, automatic, rapid and accurate out of the paper when the stack reaches the set number.
8. Ac servo control positioning of rear baffle, automatic, rapid and accurate
9.The rear baffle can be shifted automatically, suitable for small order piling.
10. Delivery side standard with electric conveyor, and double station wagon.
11. Independent seal control cabinet, electrical equipment operating in dust-free environment.
12. Color touch screen display, convenient site operation.
13. Fully automatic operation control, improve efficiency, save manpower and reduce the labor intensity of operators.

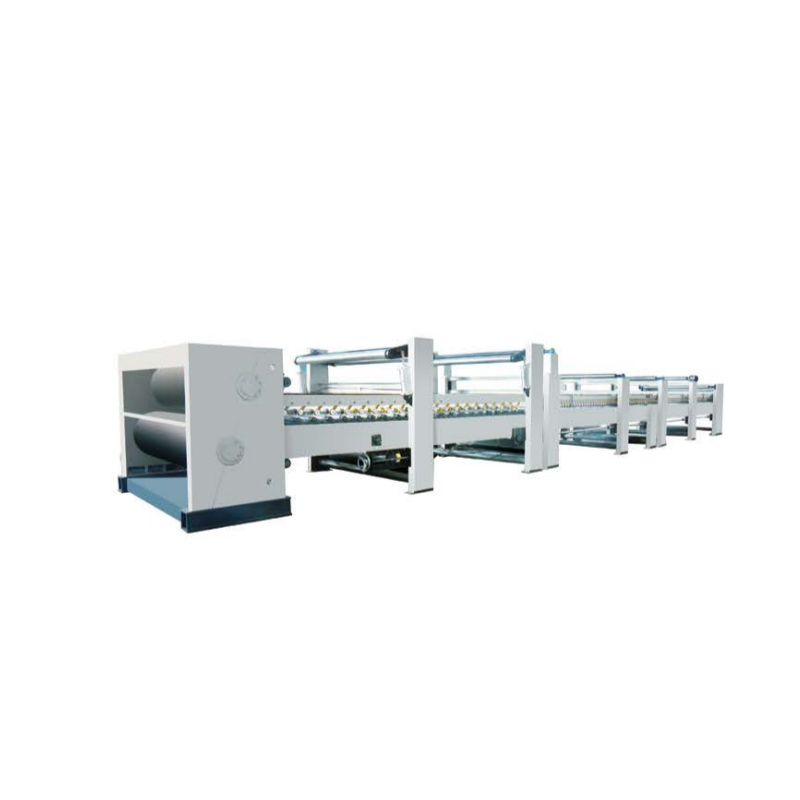

1. Design speed: 150-180m/min, width 1400mm-2200mm
2.The heating plate structure is 600mm, and the quantity can be configured to 8-14 blocks according to the
production line speed.
3.The surface of hot segment plate is ground and can be plated hard chromium, which meets the national standard of type ii pressure vessel.
4.The hot segment adopts the pressure roll structure or the thermal pressure structure, but according to the number of layers of the production board, the pressure of the section pneumatic adjustment can be selected.
5.Cylinder tensioning device is adopted for cotton belt. Choose electric or automatic
conveyor belt rectifying device.
6.The driving part adopts oil - invaded gearbox, which can be driven by electromagnetic speed regulating electric or variable frequency motor.
7.The main drive roller surface wear-resisting rubber, the surface of the waist drum type, preventing the transmission of the deviation.

This production line is available in large amount automatic production, which can produce corrugated paperboard correspond to national standard with high quality,
and adopted concentrated control, operarated and repaired easily, safely, reliable, reducing manpower, This production line adopts international energy saveing
technology with oil heating, which can saveing 40 percents energy than steam heating, So this can reduce costs effectively. It's an economical production in big,
middle paperboard commpany.
1. Total Length: 40-70m
2. Total Power: 100-200kw
3. Two kind of frame with shaft and frame without shaft, provide the customer with the choice.
4. Corrugated paperboard marching: diameter of corrugated rouer: 280-406mm, electric adjust speed moter used.
5. Double cylinder gum mounting marchine: On the adoption, inside two layers draw the gun, dascend to carry the paper lead the paper roller.
6. Oven: total length 7.8m, combined with 9-18 heating focks.
7. Setting Part: total length 3.8-5 m, combined weith some pairs of symmetrical shafts.
8. Horizontal,Lengthuays slicing marchine: Common knife or superthin knife selected based on customer's demand,high automatiealy, handy operating.

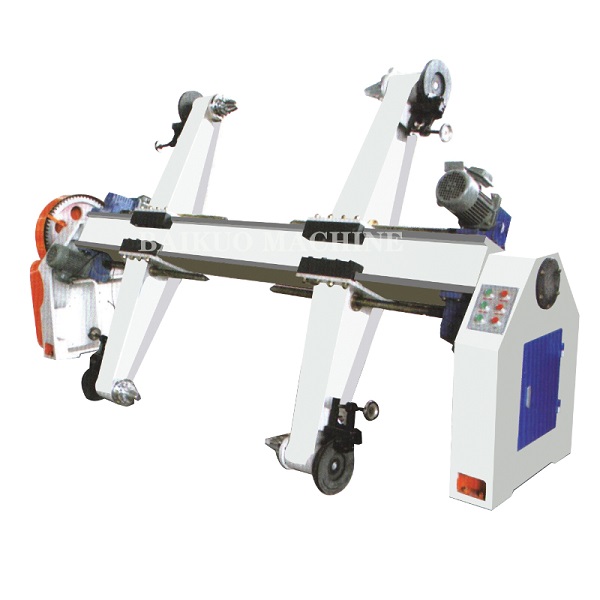

1. The diameter of the original paper is 1400mm
2. Maximum weight 2T
3. Using single slide symmetry four arms structure, two rolls of original paper can be supported at the same time
4. single point pneumatic brake
5. The clamping and rotating machinery of the arm has a fixed torque clutch, which is safe and reliable.

Corrugated Machinery Electric Mill Roll Stand Single Facer Sheet Cutter 2 Layer Corrugation Line Manufacturers

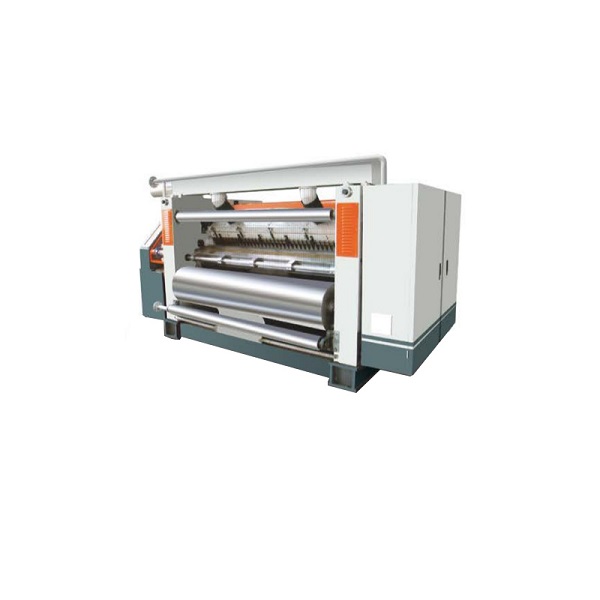

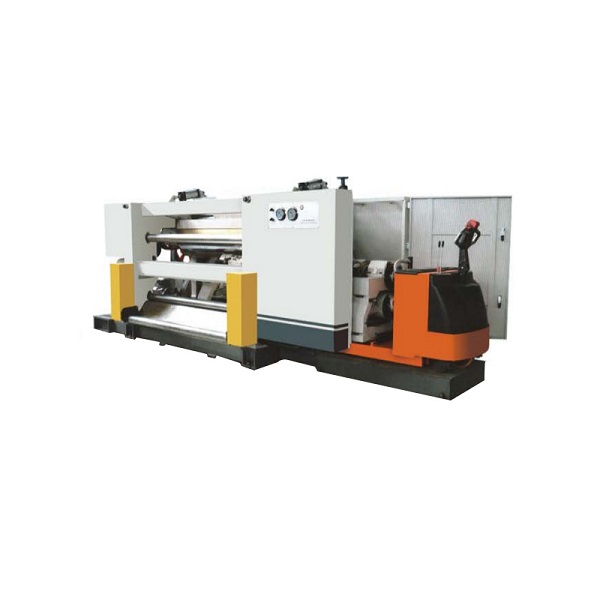

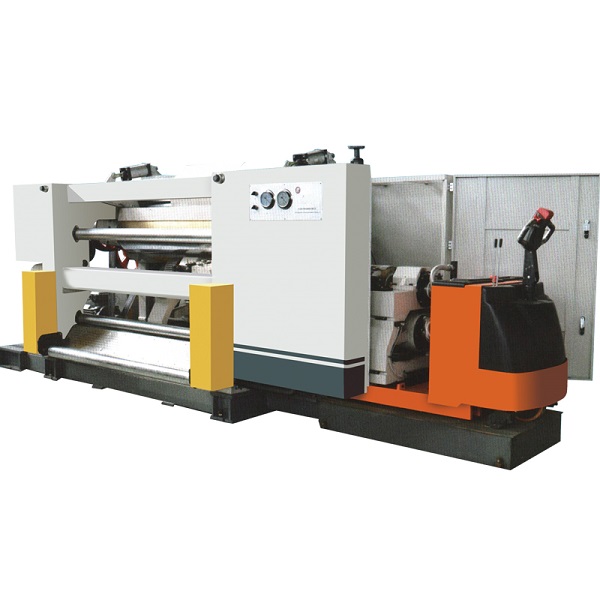

1. Design speed of SF320C: 150m/min SF360C design speed: 200m/min
2. Effective width: 1400mm-2200mm
3. Corrugated roller diameter: φ320mm φ 360mm
4. Drive the gearbox to lubricate the oil, reduce the noise, the universal joint drive, and isolate the power source (optional).

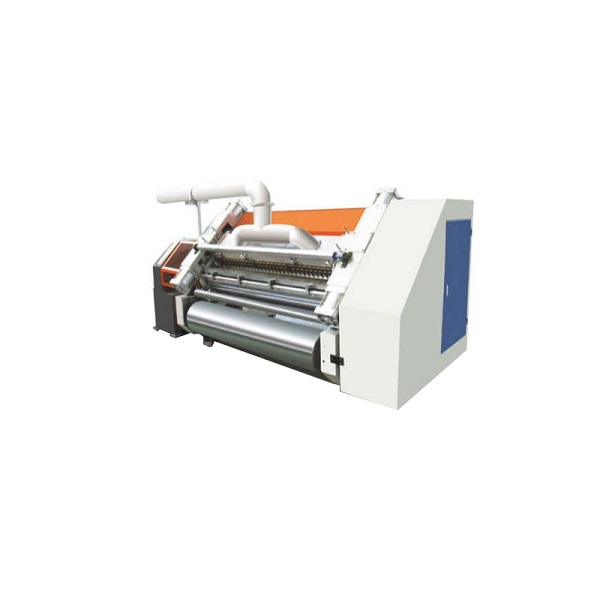

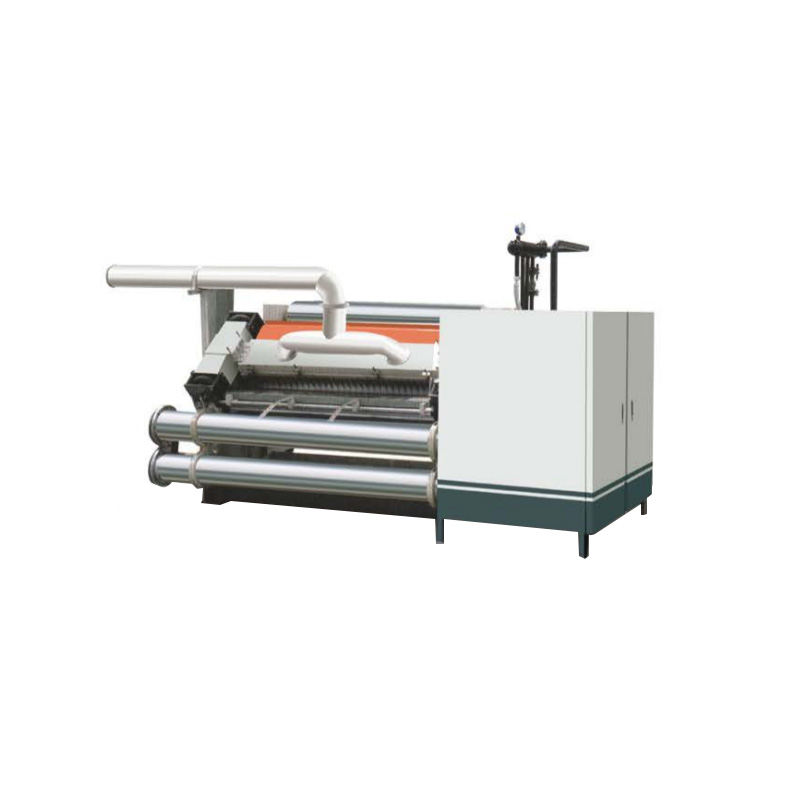

1. Design speed: 100m/min.
2. Effective width: 1400mm- 1800mm.
3. Corrugated roller: φ 280mm.
4. The driving reducer adopts oil penetration lubrication, reducing noise, universal joint drive and isolating power source.

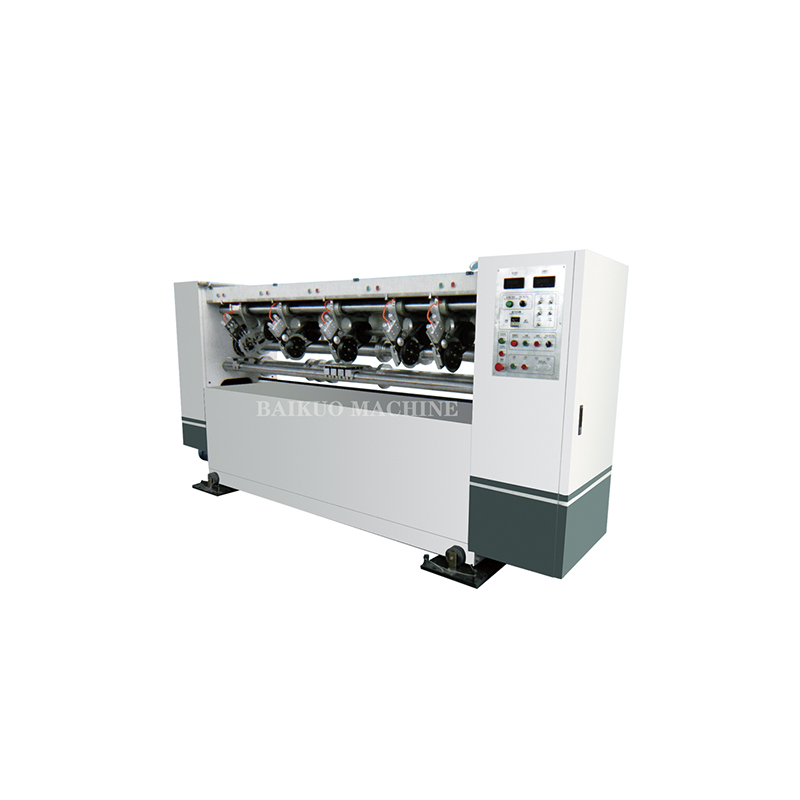

◎ Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.
◎ Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
◎ Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
◎ Electric control lift-down and correct error, easy to operate, suit for different requirements.
◎ Adopt China famous brand or imported electric element, dependable performance.
